Automobile Mechanics & IC Engine Workshop

Eager to learn Automobile and IC Engine Mechanics!!!

We have come with the workshop aimed at providing an insight to the basics of vehicle dynamics, suspension geometry, Braking unit, Steering Mechanism, Transmission, IC Engine Working and various other automobile engineering aspects.

Project Description

OVERVIEW

Automobile and IC Engine Mechanics Workshop mainly focuses from Basics to Advanced concepts in Automobile Engineering. It covers chassis design, working of Suspension unit, Steering System, Braking unit, Transmission, Fuel Supply System, IC Engine and Advanced Technologies like ABS, EBD, PGMFi, DTS-Fi, MPFI, VVTI.

The duration of this workshop will be two consecutive days, with eight hours session each day in a total of sixteen hours, properly divided into theory and hand on practical sessions. At the end of this workshop, a competition will be organized among the participating students where each participating student will get Certificate of Participation and the Winners will get Certificate of Merit.

Workshop Level : Intermediate Level

Best Suited For: All B.Tech/B.E./BCA/BSc Students

Workshop Certification: Robosapiens Technologies Pvt. Ltd.

Kits Source :

Day 1 (Session 1)

Introduction

What is an automobile?
Brief history.
Changes over the years.
Indian automobile industry.

Chassis design

Brief terminology –

Multi point strut bar.
Fender bar.
Anti-roll bar.
Monocoque.

Types of chassis –

Ladder frame chassis.
Tubular space frame chassis.
Monocoque frame chassis.
Ulsabmonocoque.
Backbone frame chassis.
Aluminium space frame.
Carbon fibremonocoque.

Suspension Unit

Brief terminology –

Weight Transfer
Jacking forces
Camber and Caster angle
Spring Rate
Travel
McPherson Strut

Types of suspensions –

Dependent suspension
Independent suspension

Day 1 (Session 2)

Steering System

Ackerman Steering Principle
Steering Mechanisms

Rack and Pinion
Recirculating Ball Type
Worm and Sector

Understeer, Oversteer
Power Steering

Transmission system

Flywheel
Clutch

Single Plate Clutch
Multi Plate Clutch
Cone Clutch
Centrifugal Clutch
Electromagnetic Clutch

Gearbox

Constant mesh type
Synchromesh type
Sliding mesh type

Reverse and its working
Types of Transmission

Manual
Semi-Automatic
Automatic
CVT

Differential
2WD, 4WD, AWD
Tyres

Tyre size notations
Tyre types

Traction Control

Day 2 (Session 3)

Braking Unit

Disc Brakes
Drum Brakes
Magnetic Brakes
Vacuum Brakes
Anti-lock braking System

4-Channel, 4-Sensor ABS
3-Channel, 3-Sensor ABS
1-Channel, 1-Sensor ABS

Brake Actuators

Cable operated
Solid Bar connection
Single-circuit hydraulic
Dual-circuit hydraulic

Power Brakes
Brake Fluids

Fuel Supply System

Fuel Filter
Carburettor
Fuel Injector
Spark Plug

IC Engine

Types of IC Engine
4-Stroke Engine
2-Stroke Engine
Engine Layout and working
Valves and Valve Timing
Engine Cooling
Turbochargers
Superchargers
Latest Technologies

PGMFi
MPFi
CRDi
VVTi

Day 2 (Session 4)

Live Demonstration –

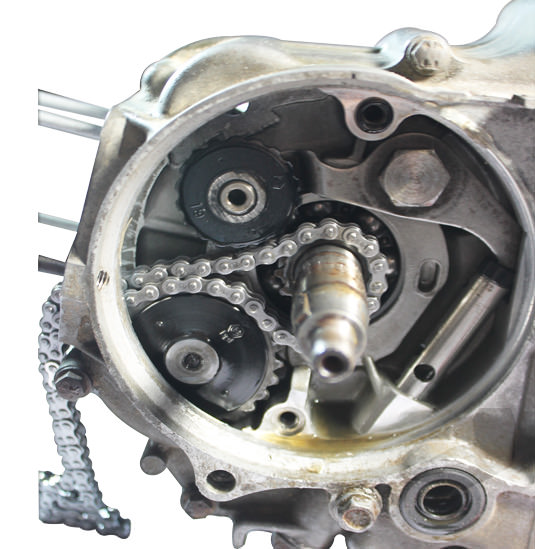

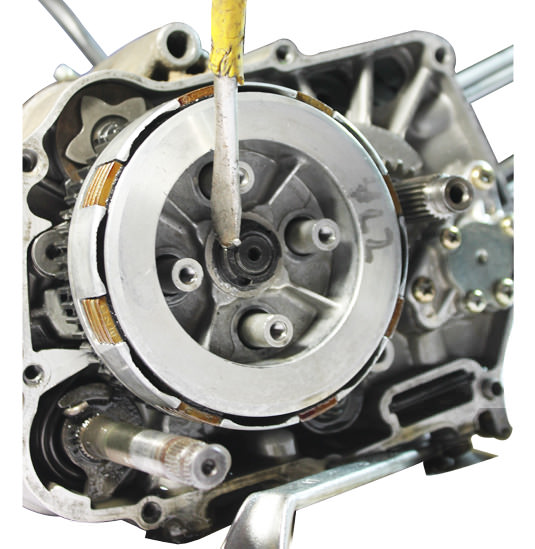

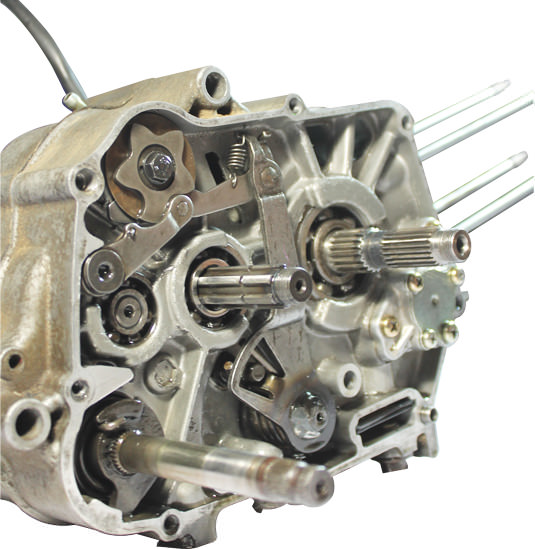

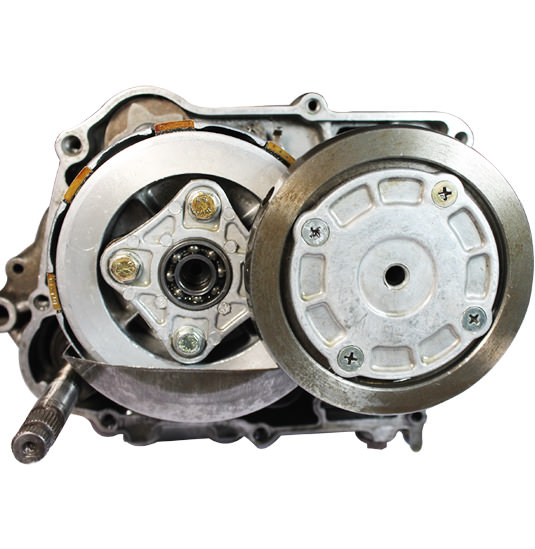

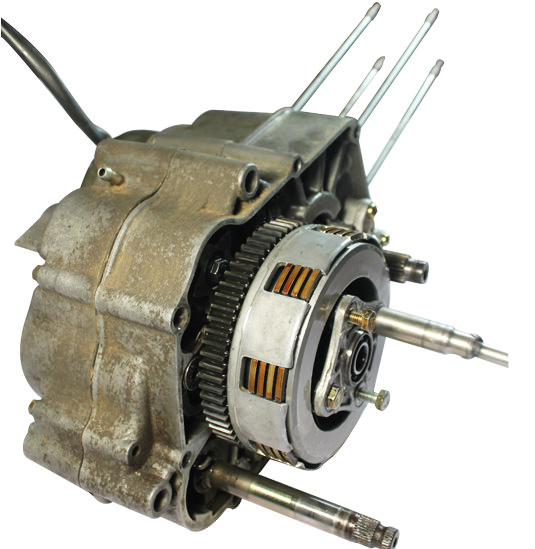

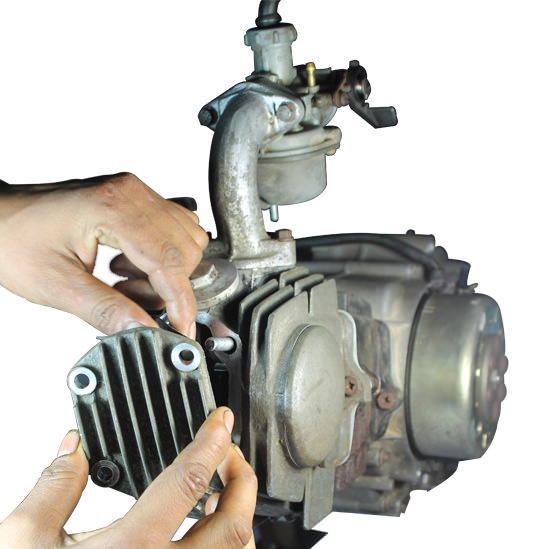

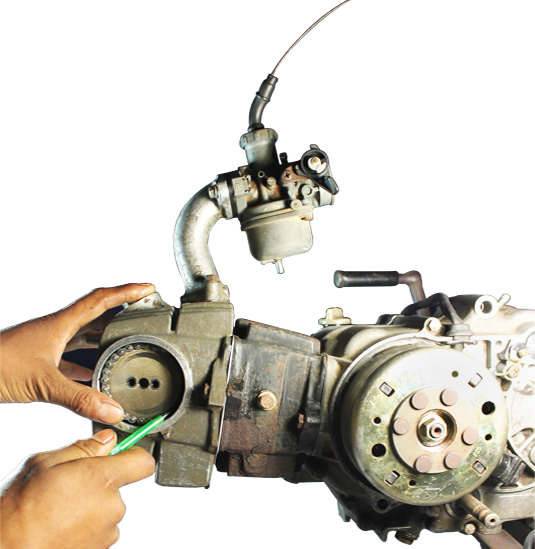

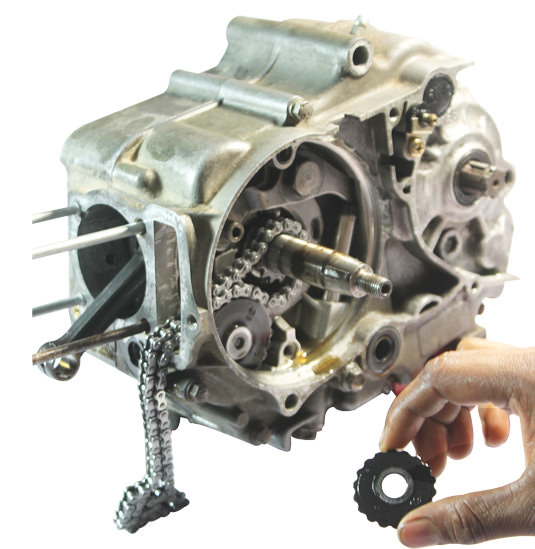

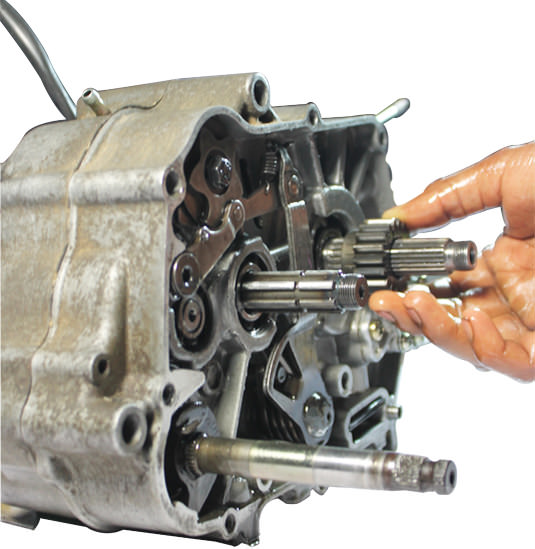

IC Engine Dismantling and Assembling

Zonal Competition

After the hand on theory and practical experience from the workshop, Zonal Round Competition will be conducted for the participants.

Certificate Distribution

On behalf of Robosapiens Technologies Pvt. Ltd. Certificate of Merit will be provided to all Zonal Round Winners and Certificate of Participation will be provided to all the Zonal Round Participants (Excluding Merit Participants).
